Wireless Charging Isolation Piece
This product is made of various metal iron oxide powders sintered (Tx type) or special alloy powder (Rx type). Improve the charging coil to be disturbed by the metal background to recover the magnetic field lines, increase the Quality Factor of the coil (high inductance, low capacitance), so the transmission efficiency can also be improved, and the separator has an excellent thermal conductivity to achieve good heat dissipation.
Wireless Charging Isolation Piece
Products Applications Frequency Recovery rate Area
W*L mm		 Thickness
mm		 TDS
WP-Tx-A01 • NFC wireless charging device
• Rx Acceptance Module
• Tx Charging Dock 		100~200KHz

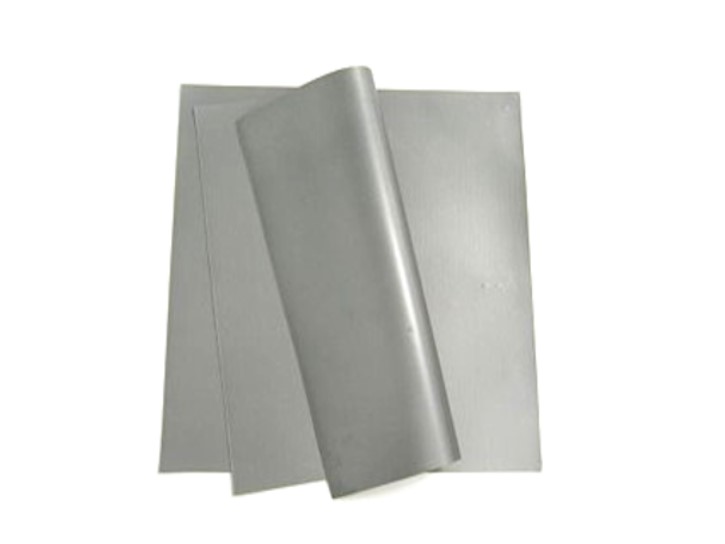

116% 		Sheets

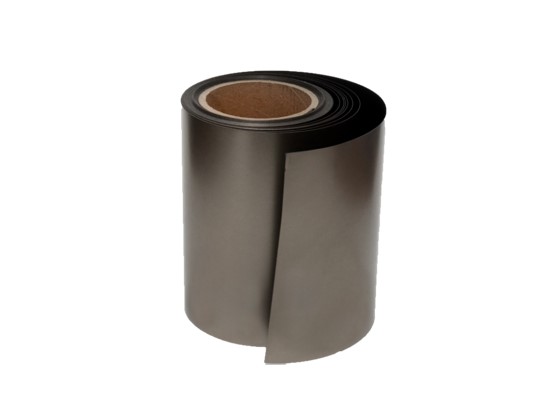

rolls 		0.1/0.15/0.2
WP-Tx-A02
111%
WP-Rx-A03
102%
WP-Rx-A04
100%
