UHF Anti-Metal Tag
Anti-metal tags are suitable for American and European requirements, with low loss characteristics. The thickness of the isolation material is 0.2~5.0mm, and the reading distance is 0.8 meters to 10.2 meters according to the model. This anti-metal tag is a powerful tool for the automatic inventory system, which can be effectively applied to the automatic reading of metal objects, liquid PET bottles/plastic bottles, aluminum foil packaging, cans, cartons, glass bottles, etc.

UHF Anti-Metal Tag
Products Size
(mm)
Read
distance
(M)
Chip Chip
lifespan
Thickness
mm
Frequency Operating
temperature
(°C)
Applications TDS
F01T 65x25 1.0~10.0 UCODE 8 Write
100,000
times
0.2~5.0 US :
902~928MHz
Euro :
865~867MHz
-40~80 •Asset Management
•Production Line Automation
•Warehouse Management
•Mold Management

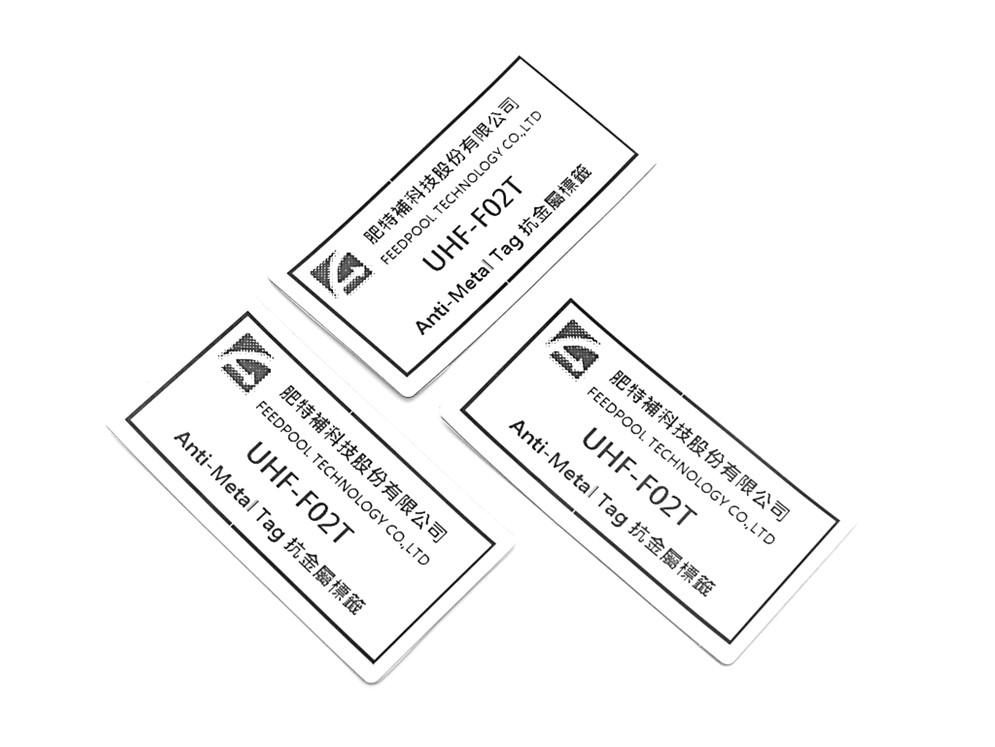

F02T 65x35 UCODE 9
F03T 55x25 1.0~8.0 UCODE 8
F04T 82x24 1.0~10.0
F05T 62x24 1.0~8.0
F06T 45x20 0.8~7.0
F07T 40x20 0.5~4.0
